测试服务器上的calico-kube-controllers 这个pod一致报错，查看错误日志说是pod连接不上kube-apiserver，连接的kube-apiserver方式为，默认default namespace下的 kubernetes  service，此serviceIP为：10.88.0.1

[root@public-test ~]# kubectl get svc

NAME         TYPE        CLUSTER-IP   EXTERNAL-IP   PORT(S)   AGE

kubernetes   ClusterIP   10.88.0.1    <none>        443/TCP   116d

查询services后端的endpoints 如下：

NAME                                      ENDPOINTS                                               AGE

kubernetes   192.168.1.60:6443,192.168.1.61:6443,192.168.1.62:6443   116

为三台master机器IP

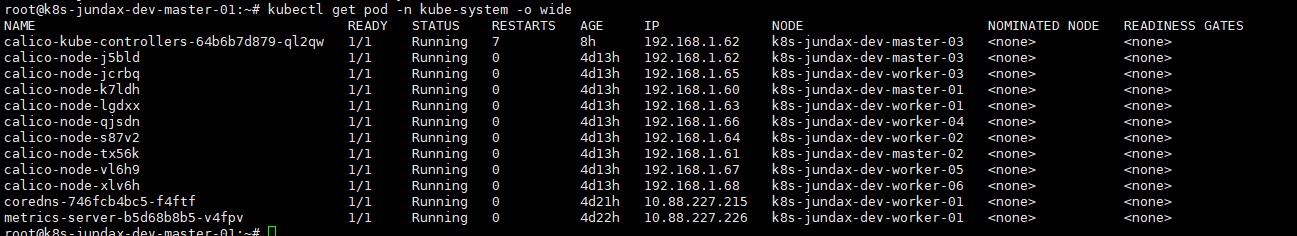

本来三台master上的节点都有污点，正常情况下，calico-kube-controller 这个pod不会调度到 master 节点上的，单实际情况：

calico-kube-controller 确实调度了master节点上，此pod的 readness 和liveness 检测都是连接到 直接连接 默认命名空间的kubernetes 服务的，偏巧的是 master没有kube-proxy 服务，没有办法通过svc 向后端 endpoints 进行负载均衡。

所以日志里一直提示连接kube-apiserver timeout .

后面看到 calico-etcd.yaml 文件，calico-kube-controller pod 设置了 “容忍度”

tolerations:

        # Mark the pod as a critical add-on for rescheduling.

        - key: CriticalAddonsOnly

          operator: Exists

        - key: node-role.kubernetes.io/master

          effect: NoSchedule

在calico上启用 eBPF 需要借助calicoctl 工具，calicoctl 配置连接etcd 的方式请参照如下连接：

https://wenda.zuncuang.com/article/730

有关什么是eBPF 请参照：

eBPF 技术介绍

使用calicoctl 启用 calicoctl 很简单：

calicoctl patch felixconfiguration default --patch='{"spec": {"bpfEnabled": true}}'

fs不过启用eBPF 需要较新的内核支持，calico 关于启用 eBPF 的优缺点，已经内核要求，我在calico官方网站找到一篇文章，摘录下来记录：

链接地址为：https://docs.projectcalico.org/archive/v3.21/maintenance/enabling-bpf#configure-calico-to-talk-directly-to-the-api-server

Enable the eBPF dataplane

Big picture

This guide explains how to enable the eBPF dataplane; a high-performance alternative to the standard (iptables based) dataplane for both Calico and kube-proxy.

Value

The eBPF dataplane mode has several advantages over standard linux networking pipeline mode:

• It scales to higher throughput.
• It uses less CPU per GBit.

• It has native support for Kubernetes services (without needing kube-proxy) that:

  • Reduces first packet latency for packets to services.
  • Preserves external client source IP addresses all the way to the pod.
  • Supports DSR (Direct Server Return) for more efficient service routing.
  • Uses less CPU than kube-proxy to keep the dataplane in sync.

To learn more and see performance metrics from our test environment, see the blog, Introducing the Calico eBPF dataplane.

Limitations

eBPF mode currently has some limitations relative to the standard Linux pipeline mode:

• eBPF mode only supports x86-64. (The eBPF programs are not currently built for the other platforms.)
• eBPF mode does not yet support IPv6.
• When enabling eBPF mode, pre-existing connections continue to use the non-BPF datapath; such connections should not be disrupted, but they do not benefit from eBPF mode’s advantages.
• Disabling eBPF mode is disruptive; connections that were handled through the eBPF dataplane may be broken and services that do not detect and recover may need to be restarted.
• Hybrid clusters (with some eBPF nodes and some standard dataplane nodes) are not supported. (In such a cluster, NodePort traffic from eBPF nodes to non-eBPF nodes will be dropped.) This includes clusters with Windows nodes.
• eBPF mode does not support floating IPs.
• eBPF mode does not support SCTP, either for policy or services.
• eBPF mode requires that node IP autodetection is enabled even in environments where Calico CNI and BGP are not in use. In eBPF mode, the node IP is used to originate VXLAN packets when forwarding traffic from external sources to services.
• eBPF mode does not support the “Log” action in policy rules.

Features

This how-to guide uses the following Calico features:

• calico/node
• eBPF dataplane

Concepts

eBPF

eBPF (or “extended Berkeley Packet Filter”), is a technology that allows safe mini programs to be attached to various low-level hooks in the Linux kernel. eBPF has a wide variety of uses, including networking, security, and tracing. You’ll see a lot of non-networking projects leveraging eBPF, but for Calico our focus is on networking, and in particular, pushing the networking capabilities of the latest Linux kernels to the limit.

Before you begin…

eBPF mode has the following pre-requisites:

• A supported Linux distribution:

  • Ubuntu 20.04 (or Ubuntu 18.04.4+, which has an updated kernel).
  • Red Hat v8.2 with Linux kernel v4.18.0-193 or above (Red Hat have backported the required features to that build).
  • Another supported distribution with Linux kernel v5.3 or above.

  If Calico does not detect a compatible kernel, Calico will emit a warning and fall back to standard linux networking.

• On each node, the BPF filesystem must be mounted at /sys/fs/bpf. This is required so that the BPF filesystem persists when Calico is restarted. If the filesystem does not persist then pods will temporarily lose connectivity when Calico is restarted and host endpoints may be left unsecured (because their attached policy program will be discarded).

• For best pod-to-pod performance, an underlying network that doesn’t require Calico to use an overlay. For example:

  • A cluster within a single AWS subnet.
  • A cluster using a compatible cloud provider’s CNI (such as the AWS VPC CNI plugin).
  • An on-prem cluster with BGP peering configured.

  If you must use an overlay, we recommend that you use VXLAN, not IPIP. VXLAN has much better performance than IPIP in eBPF mode due to various kernel optimisations.

• The underlying network must be configured to allow VXLAN packets between Calico hosts (even if you normally use IPIP or non-overlay for Calico traffic). In eBPF mode, VXLAN is used to forward Kubernetes NodePort traffic, while preserving source IP. eBPF mode honours the Felix VXLANMTU setting (see Configuring MTU).
• A stable way to address the Kubernetes API server. Since eBPF mode takes over from kube-proxy, Calico needs a way to reach the API server directly.
• The base requirements also apply.

Note: The default kernel used by EKS is not compatible with eBPF mode. If you wish to try eBPF mode with EKS, follow the Creating an EKS cluster for eBPF mode guide, which explain how to set up a suitable cluster.

How to

• Verify that your cluster is ready for eBPF mode
• Configure Calico to talk directly to the API server
• Configure kube-proxy
• Configure data interface
• Enable eBPF mode
• Try out DSR mode
• Reversing the process

Verify that your cluster is ready for eBPF mode

This section explains how to make sure your cluster is suitable for eBPF mode.

1. To check that the kernel on a node is suitable, you can run

   $ uname -rv


   The output should look like this:

   5.4.0-42-generic #46-Ubuntu SMP Fri Jul 10 00:24:02 UTC 2020


   In this case the kernel version is v5.4, which is suitable.

   On Red Hat-derived distributions, you may see something like this:

   4.18.0-193.el8.x86_64 (mockbuild@x86-vm-08.build.eng.bos.redhat.com)


   Since the Red Hat kernel is v4.18 with at least build number 193, this kernel is suitable.

2. To verify that the BPF filesystem is mounted, on the host, you can run the following command:

   mount | grep "/sys/fs/bpf"


   If the BPF filesystem is mounted, you should see:

   none on /sys/fs/bpf type bpf (rw,nosuid,nodev,noexec,relatime,mode=700)


   If you see no output, then the BPF filesystem is not mounted; consult the documentation for your OS distribution to see how to make sure the file system is mounted at boot in its standard location /sys/fs/bpf. This may involve editing /etc/fstab or adding a systemd unit, depending on your distribution. If the file system is not mounted on the host then eBPF mode will work normally until Calico is restarted, at which point workload networking will be disrupted for several seconds.

   If your distribution uses systemd, you can refer to the following settings:

   cat <<EOF | sudo tee /etc/systemd/system/sys-fs-bpf.mount
   [Unit]
   Description=BPF mounts
   DefaultDependencies=no
   Before=local-fs.target umount.target
   After=swap.target

   [Mount]
   What=bpffs
   Where=/sys/fs/bpf
   Type=bpf
   Options=rw,nosuid,nodev,noexec,relatime,mode=700

   [Install]
   WantedBy=multi-user.target
   EOF

   systemctl daemon-reload
   systemctl start sys-fs-bpf.mount
   systemctl enable sys-fs-bpf.mount


Configure Calico to talk directly to the API server

In eBPF mode, Calico implements Kubernetes service networking directly (rather than relying on kube-proxy). This means that, like kube-proxy, Calico must connect directly to the Kubernetes API server rather than via the API server’s ClusterIP.

First, make a note of the address of the API server:

• If you have a single API server with a static IP address, you can use its IP address and port. The IP can be found by running:

  The output should look like the following, with a single IP address and port under “ENDPOINTS”:

  NAME         ENDPOINTS             AGE
  kubernetes   172.16.101.157:6443   40m


  If there are multiple entries under “ENDPOINTS” then your cluster must have more than one API server. In that case, you should try to determine the load balancing approach used by your cluster and use the appropriate option below.

• If using DNS load balancing (as used by kops), use the FQDN and port of the API server api.internal.<clustername>.
• If you have multiple API servers with a load balancer in front, you should use the IP and port of the load balancer.

Tip: If your cluster uses a ConfigMap to configure kube-proxy you can find the “right” way to reach the API server by examining the config map. For example:

$ kubectl get configmap -n kube-system kube-proxy -o yaml | grep server`
    server: https://d881b853ae312e00302a84f1e346a77.gr7.us-west-2.eks.amazonaws.com

In this case, the server is d881b853aea312e00302a84f1e346a77.gr7.us-west-2.eks.amazonaws.com and the port is 443 (the standard HTTPS port).

The next step depends on whether you installed Calico using the operator, or a manifest:

• Operator
• Manifest

kind: ConfigMap
apiVersion: v1
metadata:
  name: kubernetes-services-endpoint
  namespace: kube-system
data:
  KUBERNETES_SERVICE_HOST: "<API server host>"
  KUBERNETES_SERVICE_PORT: "<API server port>"

kubectl delete pod -n kube-system -l k8s-app=calico-node
kubectl delete pod -n kube-system -l k8s-app=calico-kube-controllers

kubectl delete pod -n kube-system -l k8s-app=calico-typha

watch "kubectl get pods -n kube-system | grep calico"

kubectl get po -n kube-system -l k8s-app=calico-node

NAME                                       READY   STATUS    RESTARTS   AGE
calico-node-d6znw                          1/1     Running   0          48m
...

kubectl logs -n kube-system <pod name> | grep KUBERNETES_SERVICE_HOST

2020-08-26 12:26:29.025 [INFO][7] daemon.go 182: Kubernetes server override env vars. KUBERNETES_SERVICE_HOST="172.16.101.157" KUBERNETES_SERVICE_PORT="6443"

Configure kube-proxy

In eBPF mode Calico replaces kube-proxy so running both would waste resources. This section explains how to disable kube-proxy in some common environments.

Clusters that run kube-proxy with a DaemonSet (such as kubeadm)

For a cluster that runs kube-proxy in a DaemonSet (such as a kubeadm-created cluster), you can disable kube-proxy, reversibly, by adding a node selector to kube-proxy’s DaemonSet that matches no nodes, for example:

kubectl patch ds -n kube-system kube-proxy -p '{"spec":{"template":{"spec":{"nodeSelector":{"non-calico": "true"}}}}}'

Then, should you want to start kube-proxy again, you can simply remove the node selector.

If you choose not to disable kube-proxy (for example, because it is managed by your Kubernetes distribution), then you must change Felix configuration parameter BPFKubeProxyIptablesCleanupEnabled to false. This can be done with calicoctl as follows:

calicoctl patch felixconfiguration default --patch='{"spec": {"bpfKubeProxyIptablesCleanupEnabled": false}}'

If both kube-proxy and BPFKubeProxyIptablesCleanupEnabled is enabled then kube-proxy will write its iptables rules and Felix will try to clean them up resulting in iptables flapping between the two.

OpenShift

If you are running OpenShift, you can disable kube-proxy as follows:

kubectl patch networks.operator.openshift.io cluster --type merge -p '{"spec":{"deployKubeProxy": false}}'

To re-enable it:

kubectl patch networks.operator.openshift.io cluster --type merge -p '{"spec":{"deployKubeProxy": true}}'

Configure data interface

If the name of the your node’s interface doesn’t match the default regular expression of ^(en.*|eth.*|tunl0$), you must configure felix to detect your interface by modifying the bpfDataIfacePattern configuration option with an appropriate regex.

calicoctl patch felixconfiguration default --patch='{"spec": {"bpfDataIfacePattern": "<Regular expression>"}}'

Enable eBPF mode

The next step depends on whether you installed Calico using the operator, or a manifest:

• Operator
• Manifest

calicoctl patch felixconfiguration default --patch='{"spec": {"bpfEnabled": true}}'

Enabling eBPF mode should not disrupt existing connections but existing connections will continue to use the standard Linux datapath. You may wish to restart pods to ensure that they start new connections using the BPF dataplane.

Try out DSR mode

Direct return mode skips a hop through the network for traffic to services (such as node ports) from outside the cluster. This reduces latency and CPU overhead but it requires the underlying network to allow nodes to send traffic with each other’s IPs. In AWS, this requires all your nodes to be in the same subnet and for the source/dest check to be disabled.

DSR mode is disabled by default; to enable it, set the BPFExternalServiceMode Felix configuration parameter to "DSR". This can be done with calicoctl:

calicoctl patch felixconfiguration default --patch='{"spec": {"bpfExternalServiceMode": "DSR"}}'

To switch back to tunneled mode, set the configuration parameter to "Tunnel":

calicoctl patch felixconfiguration default --patch='{"spec": {"bpfExternalServiceMode": "Tunnel"}}'

Switching external traffic mode can disrupt in-progress connections.

Reversing the process

To revert to standard Linux networking:

1. (Depending on whether you installed Calico with the operator or with a manifest) reverse the changes to the operator’s Installation or the FelixConfiguration resource:

   $ kubectl patch installation.operator.tigera.io default --type merge -p '{"spec":{"calicoNetwork":{"linuxDataplane":"Iptables"}}}'


   or:

   calicoctl patch felixconfiguration default --patch='{"spec": {"bpfEnabled": false}}'


2. If you disabled kube-proxy, re-enable it (for example, by removing the node selector added above).

   kubectl patch ds -n kube-system kube-proxy --type merge -p '{"spec":{"template":{"spec":{"nodeSelector":{"non-calico": null}}}}}'


3. Monitor existing workloads to make sure they re-establish any connections disrupted by the switch.
